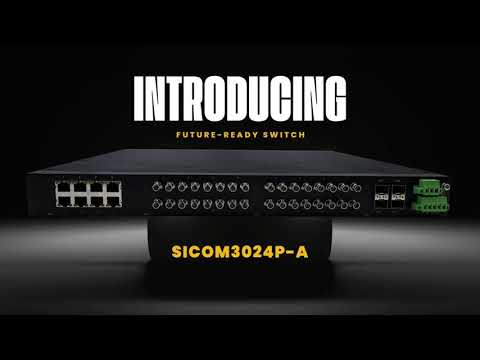

SICOM3024P-A – Switch gigabit industrial de 28 puertos en formato rack 19» con cumplimiento IEC61850
El SICOM3024P-A es un conmutador Ethernet industrial gestionado de capa 2, diseñado para operar con fiabilidad en entornos eléctricos hostiles y condiciones climáticas exigentes propias de subestaciones eléctricas y entornos industriales. El SICOM3024P-A soporta hasta 28 puertos Gigabit de fibra y cobre, cumple con las normas IEC61850-3 e IEEE1613, y cuenta con la certificación KEMA (pendiente). Se trata de un dispositivo montable en rack de 19 pulgadas y altura 1U, cuyo diseño modular interno proporciona máxima flexibilidad para una fácil expansión.
El SICOM3024P-A incorpora soporte para IEEE1588v2 PTP con estampado de tiempo por hardware, admitiendo los modos de reloj BC, P2P TC y E2E TC, alcanzando una precisión temporal de 100 ns. Dispone de múltiples funcionalidades de software de capa 2, tales como gestión de puertos, VLAN, multidifusión, QinQ, MRP, QoS y ERPS/RSTP. Ofrece opciones de gestión vía consola, Telnet, interfaz web y software de administración de red basado en SNMP. Actualmente, este producto es ampliamente utilizado en subestaciones inteligentes y diversos sistemas de comunicación industrial.
Características
Admite hasta 28 puertos gigabit de fibra/cobre, diseño modular interno para una expansión sencilla.
Compatibilidad con DT-Ring, DRP/DHP, STP/RSTP/MSTP, MRP, ERPS para garantizar la redundancia en la red.
Compatible con IEC61850 MMS edición 2.0.
Soporta sincronización basada en hardware IEEE1588 PTPv2 con una precisión de hasta 100 ns.
Compatible con protocolos Profinet, Ethernet/IP y Modbus/TCP.
Soporte para KyACB.
Cumple con la normativa de ciberseguridad IEC62443-4-2.
Cumple con los estándares IEC61850-3 e IEEE1613.
Certificaciones KEMA, CE, FCC (pendientes).
Especificaciones
Software
Switching Function
Supports VLAN and PVLAN Supports QinQ Supports port aggregation Supports flow control Supports port rate limit Supports broadcast storm suppression
Redundancy Protocol
Supports DHP and DRP and the recovery time<20 ms Supports DT-Ring, DT-Ring+, and DT-VLAN and the recovery time<50 ms Supports STP/RSTP/MSTP Supports MRP Supports ERPS
Supports IEEE 802.1x Supports HTTPs/SSL Supports SSH Supports RADIUS Supports TACACS+ Supports user grading Supports enhanced password Supports port isolate Supports MAC learing limit Complies with the cyber security IEC62443-4-2
Service Quality Management
Supports ACL Supports 802.1p(CoS),DSCP Supports SP and WRR queuing
Management & Maintenance
Supports Console, Telnet, and Web management Supports SNMPv1/v2c/v3 and can managed by Kyvision Supports IEC61850 MMS edition2.0 Supports software update via FTP Supports configuration upload/download via FTP/HTTP Supports the IP/MAC address conflict alarm, power alarm, temperature alarm,port alarm, port flow alarm，CPU/memory usage alarm，and ring alarm Supports RMON Supports port mirroring Supports Syslog，save to flash or send to log server Supports LLDP Supports Link-check
Priority queue: 8 Number of VLANs: 4k VLAN ID: 1–4093 Number of multicast groups: 1k MAC table: 32K Packet buffer: 48Mbit Switching delay:<10μs
Interface
Gigabit ports: 1000Base-X, SFP port 10/100/1000Base-T(X), RJ45 port Fast Ethernet ports: 100Base-FX, single/multi mode, SC/ST connector 100Base-FX, SFP port(LC connector) 10/100Base-T(X), RJ45 port Console port: RS232,RJ45 Alarm contact: 3-pin 5.08mm-spacing plug-in terminal block, 250 VAC/220 VDC Max, 2 A Max, 60 W Max
LED
LED on front panel Running LED: Run Alarm LED: Alarm Power LED: PWR1, PWR2 Ring Role LED: Ring KyACB LED: USB Port LED: Link/ACT Port speed LED: Speed LED on rear panel Port LED: Link/ACT Port speed LED: Speed
Power Requirements
Power input: 24-48VDC(18-72VDC), 100-240VAC,50/60Hz;110-220VDC (85-264VAC/77-300VDC) Power terminal: 5-pin 5.08 mm-spacing plug-in terminal block Power consumption:<35w Overload protection: Support Reverse connection protection: Support Redundancy protection: Support
Physical Characteristics
Housing: Metal Cooling: Natural cooling, fanless Protection Class: IP40 Dimensions(WxHxD): 482.6mm×44mm×322.5mm Weight: 4Kg Mounting: 19 inch 1U rack mounting
Environmental Limits
Operating temperature: -40°C to +85°C Storage temperature: -40°C to +85°C Ambient Relative Humidity: 5% – 95% (non-condensing)
Quality Assurance
Warranty: 5 years
Approvals
CE/FCC(Pending)
Industry Standard
EMI: FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS: IEC61000-4-2(ESD) ±8kV(contact),±15kV(air) IEC61000-4-3(RS) 10V/m(80MHz-2GHz) IEC61000-4-4(EFT) Power Port:±4kV;Data Port:±2kV IEC61000-4-5(Surge) Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV IEC61000-4-6(CS) 3V(10kHz-150kHz);10V(150kHz-80MHz) IEC61000-4-8(power frequency magnetic field) 100A/m(cont.),1000A/m(1s-3s) IEC61000-4-9(pulsed magnetic field) 1000A/m IEC61000-4-10(damped oscillation) 100A/m IEC61000-4-12(oscillatory wave) 2.5kV/CM,1kV/DM IEC61000-4-16(common mode conduction) 30V(cont.),300V(1s) Machinery: IEC60068-2-6 (vibration) IEC60068-2-27 (shock) IEC60068-2-32 (free fall) Climatic environmental: IEC60068-2-1 Cold test IEC60068-2-2 Dry heat test IEC60068-2-14 Change of temperature test IEC60068-2-30 Damp heat cyclic test IEC60068-2-78 Damp heat steady state test
Ordering info
Full Gigabit Models
Product Model
SICOM3024P-A-Ports-PS1-PS2
Code Definition
Ordering Codes
Ports
28GE, 4GX24GE, 8GX20GE, 12GX16GE, 16GX12GE, 20GX8GE, 24GX4GE, 28GXGX: 1000Base-X SFP port GE: 10/100/1000Base-T(X) RJ45 port
PS1-PS2 (Power Supply)
HV-HV=100-240VAC,50/60Hz; 110-220VDC(85-264VAC/77-300VDC), redundant power supplies; L2-L2=24-48VDC(18-72VDC), redundant power supplies ;
