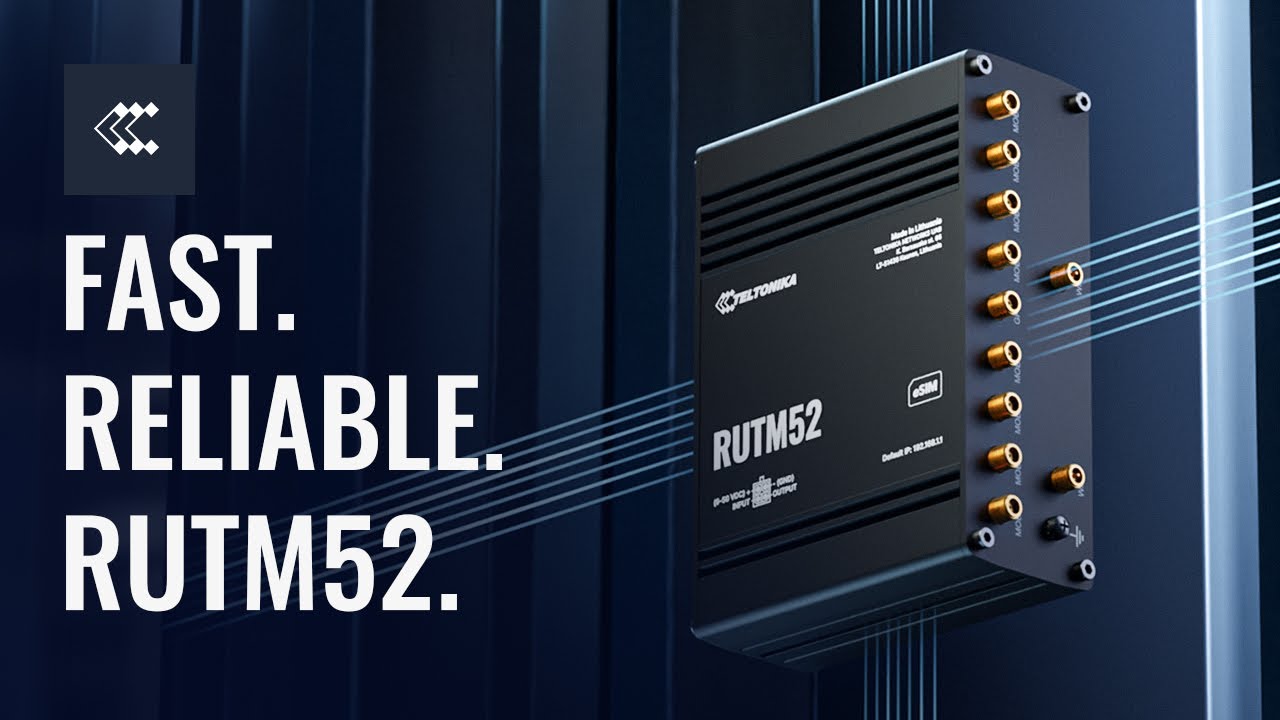

RUTM52 – Router 5G dual

El RUTM52 es un router 5G preparado para el futuro, diseñado para aplicaciones de misión crítica, con módems 5G duales, capacidades multi-WAN y conmutación a la red 4G LTE Cat 20. Con doble ranura SIM, compatibilidad con eSIM y compatibilidad con las arquitecturas SA y NSA 5G, garantiza una conectividad ininterrumpida de alta velocidad hoy y en los próximos años. El equilibrio de carga, Wi-Fi 5 y cinco puertos Gigabit Ethernet mejoran el rendimiento, mientras que RutOS con protocolos industriales y varias VPN lo hacen versátil para configuraciones complejas. Compatible con RMS, el RUTM52 es ideal para una gestión remota segura y eficiente.

Especificaciones

Mobile

  • Mobile module2 x 5G Sub-6 GHz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO) 900/600Mbps UL (2×2 MIMO); 4G (LTE): DL Cat 20 2.0Gbps (4×4 MIMO)/UL Cat 20 200Mbps; 3G: 42 Mbps DL, 5.76Mbps UL
  • 3GPP ReleaseRelease 16
  • eSIMConsumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
  • SIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
  • StatusIMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
  • SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • USSDSupports sending and reading Unstructured Supplementary Service Data messages
  • Black/White listOperator black/white list (by country or separate operators)
  • Multiple PDNPossibility to use different PDNs for multiple network access and services
  • Band managementBand lock, Used band status display
  • SIM PIN code managementSIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
  • APNAuto APN
  • BridgeDirect connection (bridge) between mobile ISP and device on LAN
  • PassthroughRouter assigns its mobile WAN IP address to another device on LAN
  • Framed routingFramed routing: support an IP network behind 5G UE

Wireless

  • Wireless mode802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
  • WiFi securityWPA2-Enterprise – PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
  • SSID/ESSIDESSID stealth mode
  • Wi-Fi usersUp to 150 simultaneous connections
  • Wireless Connectivity FeaturesWireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
  • Wireless MAC filterAllowlist, blocklist
  • Wireless QR code generatorOnce scanned, a user will automatically enter your network without needing to input login information
  • TravelMateForward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

  • WAN1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

  • RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
  • Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
  • VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • FirewallPort forward, traffic rules, custom rules, TTL target customisation
  • Firewall status pageView all your Firewall statistics, rules, and rule counters
  • Ports managementView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
  • Network topologyVisual representation of your network, showing which devices are connected to which other devices
  • HotspotCaptive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
  • DHCPStatic and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
  • QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
  • DDNSSupported >25 service providers, others can be configured manually
  • DNS over HTTPSDNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
  • Network backupWi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
  • Load balancingBalance Internet traffic over multiple WAN connections
  • SSHFSPossibility to mount remote file system via SSH protocol
  • VRF supportInitial virtual routing and forwarding (VRF) support
  • Traffic ManagementReal-time monitoring, wireless signal charts, traffic usage history

Security

  • 802.1xPort-based network access control client
  • AuthenticationPre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
  • FirewallPreconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
  • Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLANPort and tag-based VLAN separation
  • Mobile quota controlMobile data limit, customizable period, start time, warning limit, phone number
  • WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
  • Access controlFlexible access control of SSH, Web interface, CLI and Telnet
  • TPMIdentification and authentication module, TPM 2.0 standard
  • SSL certificate generationLet’s Encrypt and SCEP certificate generation methods

VPN

  • OpenVPNMultiple clients and a server can run simultaneously, 27 encryption methods
  • OpenVPN EncryptionDES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
  • IPsecXFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
  • GREGRE tunnel, GRE tunnel over IPsec support
  • PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
  • StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
  • DMVPNMethod of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
  • SSTPSSTP client instance support
  • ZeroTierZeroTier VPN client support
  • WireGuardWireGuard VPN client and server support
  • TincTinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
  • TailscaleTailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA

  • Supported modesClient, Server
  • Supported connection typesTCP

MODBUS

  • Supported modesServer, Client
  • Supported connection typesTCP
  • Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
  • Supported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

  • ProtocolHTTP(S), MQTT, Azure MQTT
  • Data to serverExtract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

MQTT Gateway

  • Modbus MQTT GatewayAllows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

  • Supported modesDNP3 Station, DNP3 Outstation
  • Supported connectionTCP

DLMS

  • DLMS SupportDLMS – standard protocol for utility meter data exchange
  • Supported modesClient
  • Supported connection typesTCP
  • COSEMAllows to scan meter COSEM objects for automatic detection and configuration

API

  • Teltonika Networks Web API (beta) supportExpand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

  • WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
  • FOTAFirmware update from server, automatic notification
  • SSHSSH (v1, v2)
  • SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
  • CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
  • EmailReceive email message status alerts of various services
  • TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTTMQTT Broker, MQTT publisher
  • SNMPSNMP (v1, v2, v3), SNMP Trap, Brute force protection
  • JSON-RPCManagement API over HTTP/HTTPS
  • RMSTeltonika Remote Management System (RMS)

IoT Platforms

  • ThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
  • Cumulocity – Cloud of ThingsAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
  • Azure IoT HubCan be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
  • AWS IoT CoreUtility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality

System Characteristics

  • CPUMediaTek, Dual-Core, 880 MHz, MIPS1004Kc
  • RAM256 MB, DDR3
  • FLASH storage16 MB serial NOR flash, 256 MB serial NAND flash

Firmware / Configuration

  • WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
  • FOTAUpdate FW
  • RMSUpdate FW/configuration for multiple devices at once
  • Keep settingsUpdate FW without losing current configuration
  • Factory settings resetA full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

FIRMWARE CUSTOMISATION

  • Operating systemRutOS (OpenWrt based Linux OS)
  • Supported languagesBusybox shell, Lua, C, C++
  • Development toolsSDK package with build environment provided
  • GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
  • Package ManagerThe Package Manager is a service used to install additional software on the device

Location Tracking

  • GNSSGPS, GLONASS, BeiDou, Galileo and QZSS
  • CoordinatesGNSS coordinates via WebUI, SMS, TAVL, RMS
  • NMEANMEA 0183
  • NTRIPNTRIP protocol (Networked Transport of RTCM via Internet Protocol)
  • Server softwareSupported server software TAVL, RMS
  • GeofencingConfigurable multiple geofence zones

Input / Output

  • Input1 x Configurable digital Input, 0 – 6 V detected as logic low, 8 – 50 V detected as logic high
  • Output1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA
  • EventsEmail, RMS, SMS
  • I/O jugglerAllows to set certain I/O conditions to initiate event

Power

  • Connector4-pin industrial DC power socket
  • Input voltage range9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
  • PoE (passive)Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 50 VDC
  • Power consumptionIdle: < 5 W, Max: < 13 W

Physical Interfaces

  • Ethernet5 x RJ45 ports, 10/100/1000 Mbps
  • I/O’s1 x Digital Input, 1 x Digital Output on 4-pin power connector
  • Status LEDs6 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
  • SIM2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
  • Power1 x 4-pin power connector
  • Antennas8 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
  • ResetReboot/User default reset/Factory reset button
  • Other
     1 x Grounding screw

Physical Specification

  • Casing materialAnodized aluminum housing and panels
  • Dimensions (W x H x D)132 x 44.2 x 95.1 mm
  • Weight560 g
  • Mounting optionsDIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

  • Operating temperature-40 °C to 60 °C
  • Operating humidity10% to 90% non-condensing
  • Ingress Protection RatingIP30

Regulatory & Type Approvals

  • RegulatoryCE, UKCA, RCM, FCC, IC, EAC, UCRF, WEE
