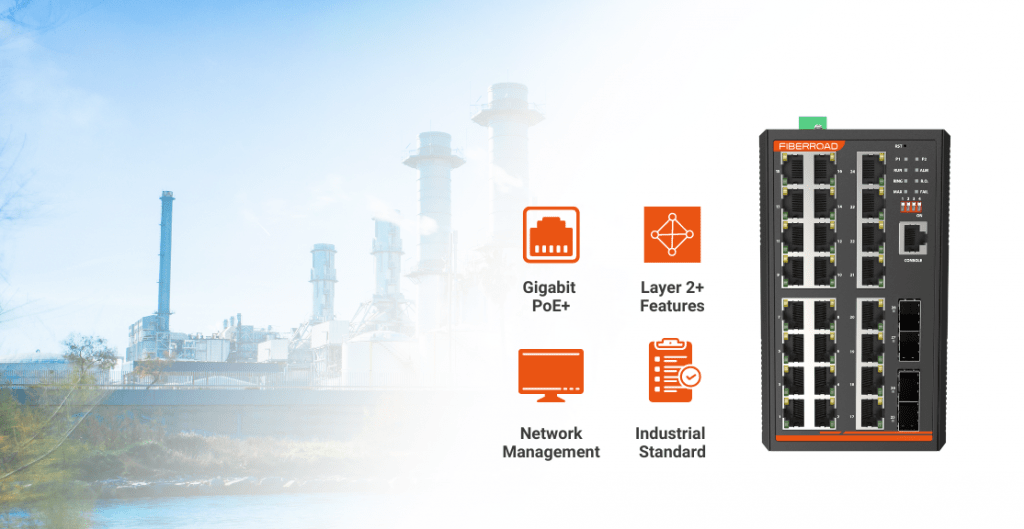

4 x 100/1000Base-S SFP + 24 x GE PoE/PoE+/PoE++ managed switch
Switch industrial gestionable con 4 uplinks 100/1000M SFP y 24 puertos 10/100/1000BaseTX. Alimentación 48-56Vdc. Soporte VLAN, Q-in-Q, QoS, redundancia lineal LACP y en anillos RSTP/ERPS. Gestión por consola, Telnet, WebUI y SNMP.
El modelo FR-7M3424P dispone de 24 puertos PoE/PoE+ hasta 30W por puerto con un budget total de 480W mientras que el modelo FR-7M3424BT dispone de 16 puertos PoE++ hasta 90W por puerto y 8 puertos PoE/PoE+ hasta 30W por puerto con un budget total de 720W.
Dispone de 4 microinterruptores para configuración manual de la velocidad en los puertos ópticos, anillo RTSP y aislamiento del tráfico entre todos los puertos de cobre. Asimismo, dispone de leds indicadores del estado de la alimentación y el anillo entre otros.
| Ethernet Interface | ||
| Model | FR-7M3424P | FR-7M348FP |
| Ports | 24×10/100/1000M Base-TX RJ454X100/1000M Base-X SFP Uplink | 16×10/100/1000M Base-TX RJ4512×100/1000M Base-X SFP |
| Port Mode(Tx) | Auto-NegotiationFull/Half Duplex ModeAuto MDI/MDI-X Connection | |
| Standards | IEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X) and 100BaseFXIEEE 802.3ab for 1000BaseT(X)IEEE 802.3z for 1000BaseSX/LX/LHX/ZXIEEE 802.3x for flow controlIEEE 802.1D-2004 for Spanning Tree ProtocolIEEE 802.1w for Rapid Spanning Tree ProtocolIEEE 802.1p for Class of ServiceIEEE 802.1Q for VLAN TaggingIEEE 802.1X for authenticationIEEE 802.3ad for Port Trunk with LACP | |
| Packet Buffer Size | 4Mbits | |
| Maximum Packet Length | Up to 10K | |
| MAC Address Table | 8K | |
| Transmission Mode | Store and Forward (full/half duplex mode) | |

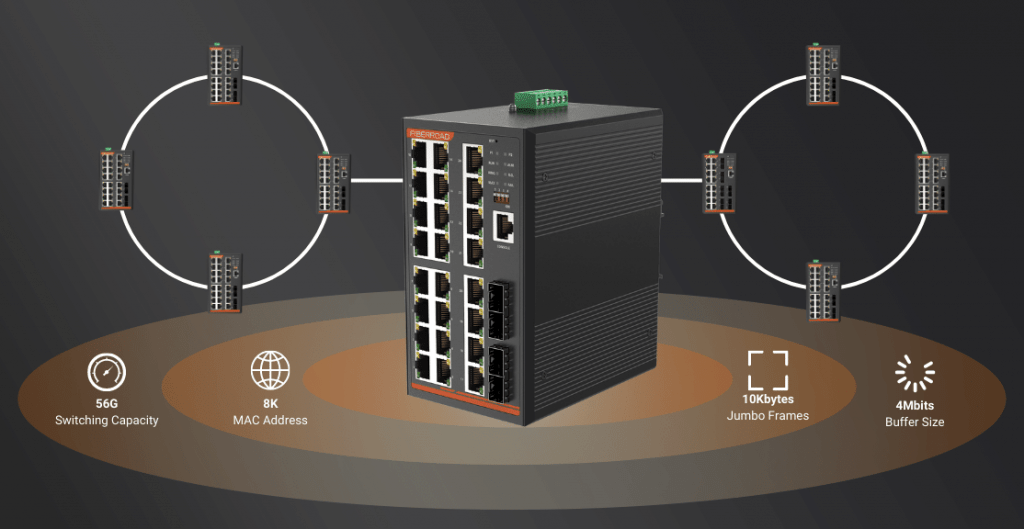

| Exchange Property | Delay time: < 7μsBackplane bandwidth: 56Gbps | |
| IGMP Group | 4096 | |
| Max. No. of VLAN | 256 | |
| VLAN ID Range | VID 1 to 4094 | |
| Physical Characteristics | |
| Housing | Aluminium case |
| IP Rating | IP40 |
| Dimensions | 155mmx128mmx88mm |
| Installation | DIN Rail/Wall Mount |
| Weight | 1.35kg |
| Environmental | |

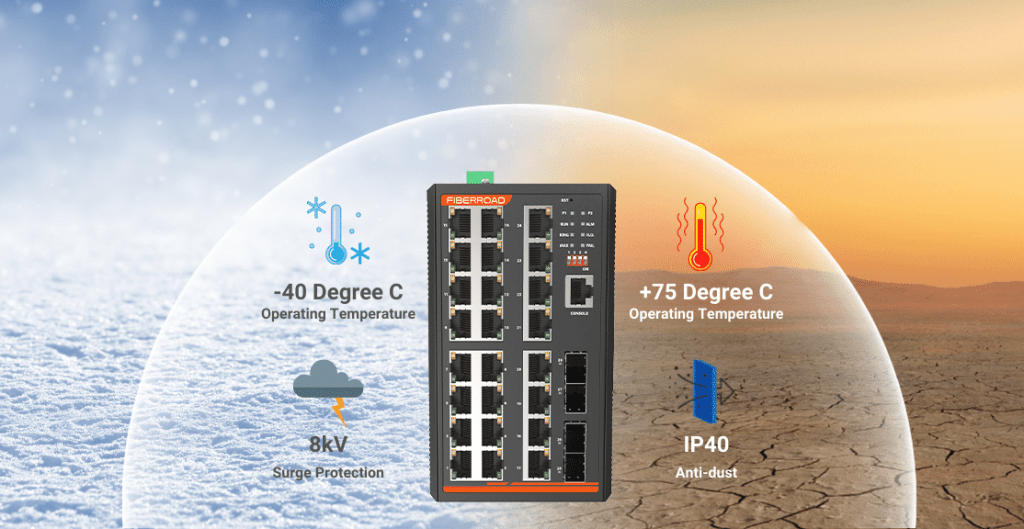

| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| MTBF | 907,476 hours @ Telcordia SR-332 Standard |
| Heat Dissipation | 65 BTU/h (non-PoE mode) |
| Cooling | Passive Cooling, Fanless Design |
| Noise Level | 0 dBA |
| Ethernet Software Features | |
| Redundancy Protocols | Support STP/RSTP/ERPSv2, Link Aggregation |
| Multicast Support | Support IGMP Snooping V1/V2/V3, support GMRP, GVMP,802.1Q |
| VLAN | Support IEEE 802.1Q 4K VLAN, support QINQ, Double VLAN |
| Time Management | SNTP |
| QOS | Flow-based redirectionFlow-based rate limitingFlow-based packet filtering8*Output queues of each port 802.1p/DSCP priority mappingDiff-Serv QoS, Priority Mark/RemarkQueue Scheduling Algorithm (SP, WRR, SP+WRR) |
| ACL | Port-based Issuing ACLACL based on port and VLANL2 to L4 packet filtering, matching first 80 bytes message.Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, VLAN, etc |
| POE Management (Depending on model) | Total power limit of PoE power supplyPoE output power allocationPoE output priority configurationPoE working statusScheduling of PoE operation |
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping |
| Management Function | Support CLI、WEB、SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT |
| Alarm Management | Support 1 way relay alarm output, RMON, TRAP |
| Security | Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0Support DHCP Snooping, Option 82，802.1X security access,Support user hierarchical management, ACL access control list,Support DDOS，port-based MAC filtering/binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit |
| Advance Layer 2+ Features | IPv4/IPv6 ManagementStatic Route |
| PoE & Power Supply | ||||
| Model | FR-7M3424P | FR-7M348FP | FR-7M3424BT | FR-7M348FBT |
| PoE Ports | Port 1 to 16/24 IEEE802.3af/at @PoE+ | Port 1 to 16/24 IEEE802.3af/at/bt @PoE++ | ||
| Power Supply Pin | Default: 1/2(+), 3/6(-) | Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-) | ||
| Max Power Per Port | 30W | 90W | ||
| Total PWR /Input Voltage | 480W(DC48-56V) (Model dependent) | 720W(DC48-56V) (Model dependent) | ||
| Power Consumption | 24 Watts Max(without PoE load) | |||
| Power Inputs | 2 | |||
| Input Voltage | 9-56VDC, Redundant dual inputs | |||
| Operating Voltage | Non-PoE Mode: 9-56VDC30W PoE Mode: 48-56VDC90W PoE Mode: 52-56VDC(IEEE802.3bt model) | |||
| Connector | 1 removable 6-contact terminal blocksPin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm | |||
| Protection | Overload Current Protection, Reverse Polarity Protection | |||
