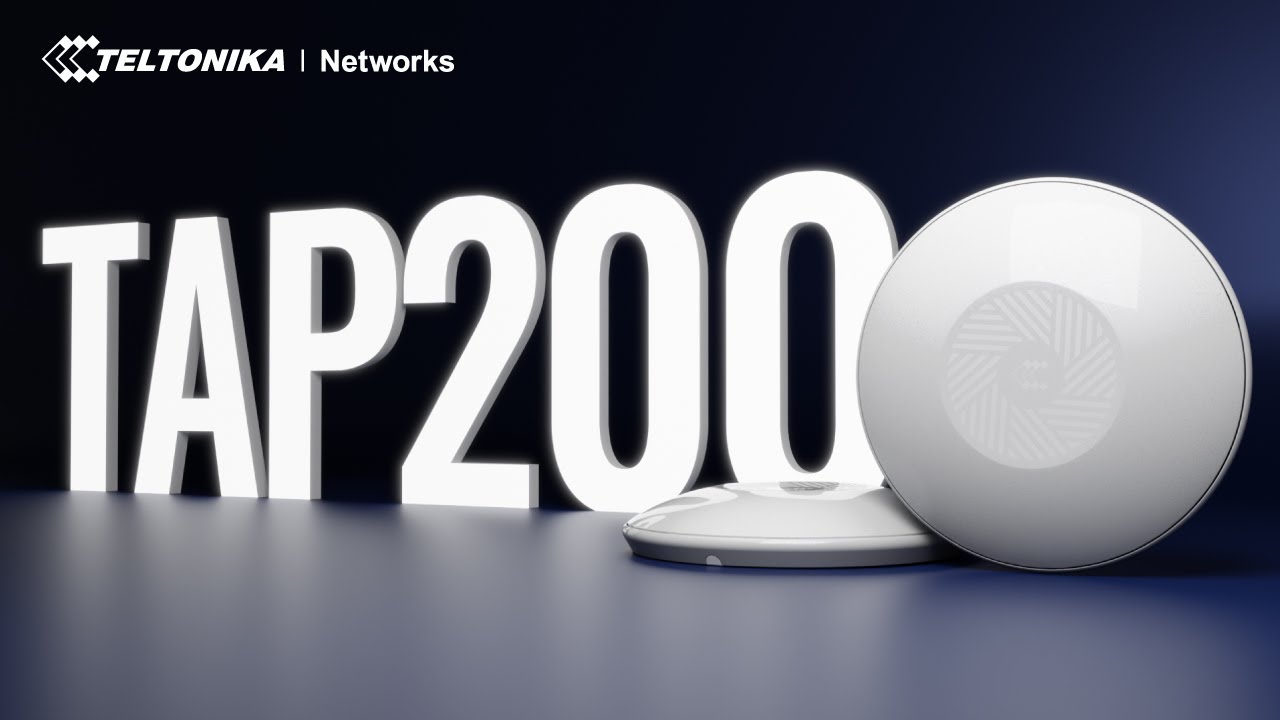

TAP200

TAP100

Equipado con tecnología de doble banda, itinerancia rápida y un puerto RJ45 con función PoE-in, el TAP200 de Teltonika Networks es un punto de acceso inalámbrico Wi-Fi 5 diseñado para mejorar la cobertura Wi-Fi en espacios de densidad media donde es esencial un alto rendimiento de la red. El TAP200 cuenta con un soporte de montaje integrado para una instalación rápida y fácil, y un diseño elegante para integrarse perfectamente en tiendas, empresas o cualquier otro entorno.

Especificaciones

WIRELESS

  • Wireless mode802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
  • Wi-Fi securityWPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, isolate clients
  • SSID/ESSIDESSID stealth mode (Hide SSID)
  • Wi-Fi usersUp to 100 simultaneous connections
  • Wireless mesh/roamingFast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
  • Wireless MAC filterWhitelist, blacklist
  • Wireless QR code generatorOnce scanned, a user will automatically enter your network without needing to input login information.

ETHERNET

  • Ethernet1 x RJ45 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK

  • Network protocolsTCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP client, SNMP

SECURITY

  • AuthenticationSSH key based, HTTPS, CLI, IP & Login attempts block
  • VLANTag-based VLAN separation

API

  • Teltonika Networks Web API (beta) supportExpand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

MONITORING & MANAGEMENT

  • WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
  • FOTAFirmware update from server, automatic notification
  • SSHSSH (v1, v2)
  • EmailReceive email message status alerts of various services
  • JSON-RPCManagement API over HTTP/HTTPS
  • RMSTeltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS

  • CPUMediaTek, Dual-Core, 880 MHz, MIPS 1004Kc
  • RAM256 MB, DDR3
  • FLASH storage16MB, SPI NOR Flash

FIRMWARE / CONFIGURATION

  • WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
  • FOTAUpdate FW
  • RMSUpdate FW/configuration for multiple devices at once
  • Keep settingsUpdate FW without losing current configuration

FIRMWARE CUSTOMISATION

  • Operating systemRutOS (OpenWrt based Linux OS)
  • Supported languagesBusybox shell, Lua, C, C++
  • Development toolsSDK package with build environment provided
  • GPL customizationYou can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs.

POWER

  • ConnectorRJ45 Socket
  • Input voltage range44.0 – 57.0 V
  • PoE standards802.3af PoE Class 1
  • Power consumptionIdle: < 4 W / Max: < 5.5 W

PHYSICAL INTERFACES

  • Ethernet1 x RJ45 port, 10/100/1000 Mbps
  • Status LEDs1 x Power LED (can be turned off from web-UI)
  • Antennas2 x Internal for 2.4 GHz Wi-Fi, 2 x Internal for 5 GHz Wi-Fi
  • Antennas specifications2 x 2400 – 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional2 x 5150 – 5850 MHz, 50 Ω, VSWR <2, gain < 5.02 dBi, omnidirectional
  • ResetReboot/User default reset/Factory reset button

PHYSICAL SPECIFICATION

  • Casing materialUV stabilized plastic
  • DimensionsØ 158 mm x 30 mm
  • Weight190 g
  • Mounting optionsAP Mounting Bracket (for ceiling mount)

OPERATING ENVIRONMENT

  • Operating temperature-40 °C to 75 °C
  • Operating humidity10% to 90% non-condensing
  • Ingress Protection RatingIP30

REGULATORY & TYPE APPROVALS

  • RegulatoryCE, UKCA, FCC, IC, RCM, CB, EAC, UCRF, WEEE

EMC EMISSIONS & IMMUNITY

  • StandardsEN 55032:2015+A11:2020EN 55035:2017+A11:2020EN 61000-3-3:2013+A1:2019+A2:2021EN IEC 61000-3-2:2019+A1:2021EN 301 489-1 V2.2.3EN 301 489-17 V3.2.4
  • ESDEN 61000-4-2:2009
  • Radiated ImmunityEN IEC 61000-4-3:2020
  • EFTEN 61000-4-4:2012
  • Surge Immunity (AC Mains Power Port)EN 61000-4-5:2014 + A1:2017
  • CSEN 61000-4-6:2014
  • DIPEN IEC 61000-4-11:2020

RF

  • StandardsEN 300 328 V2.2.2; EN 300 893 V2.1.1; EN 300 440 V2.2.1

SAFETY

  • StandardsIEC 62368-1:2018EN IEC 62368-1:2020+A11:2020EN IEC 62311:2020
DATASHEET
