⚡⚡⚡ 𝐈𝐄𝐂𝟔𝟏𝟖𝟓𝟎 𝐒𝐎𝐋𝐔𝐓𝐈𝐎𝐍𝐒 𝐅𝐎𝐑 𝐒𝐌𝐀𝐑𝐓 𝐆𝐑𝐈𝐃 ⚡⚡⚡
Gracias a nuestro socio KLG SMARTEC, contamos con una amplia gama de soluciones de comunicación y sincronización basadas en 61850 para la Smart Grid.
|

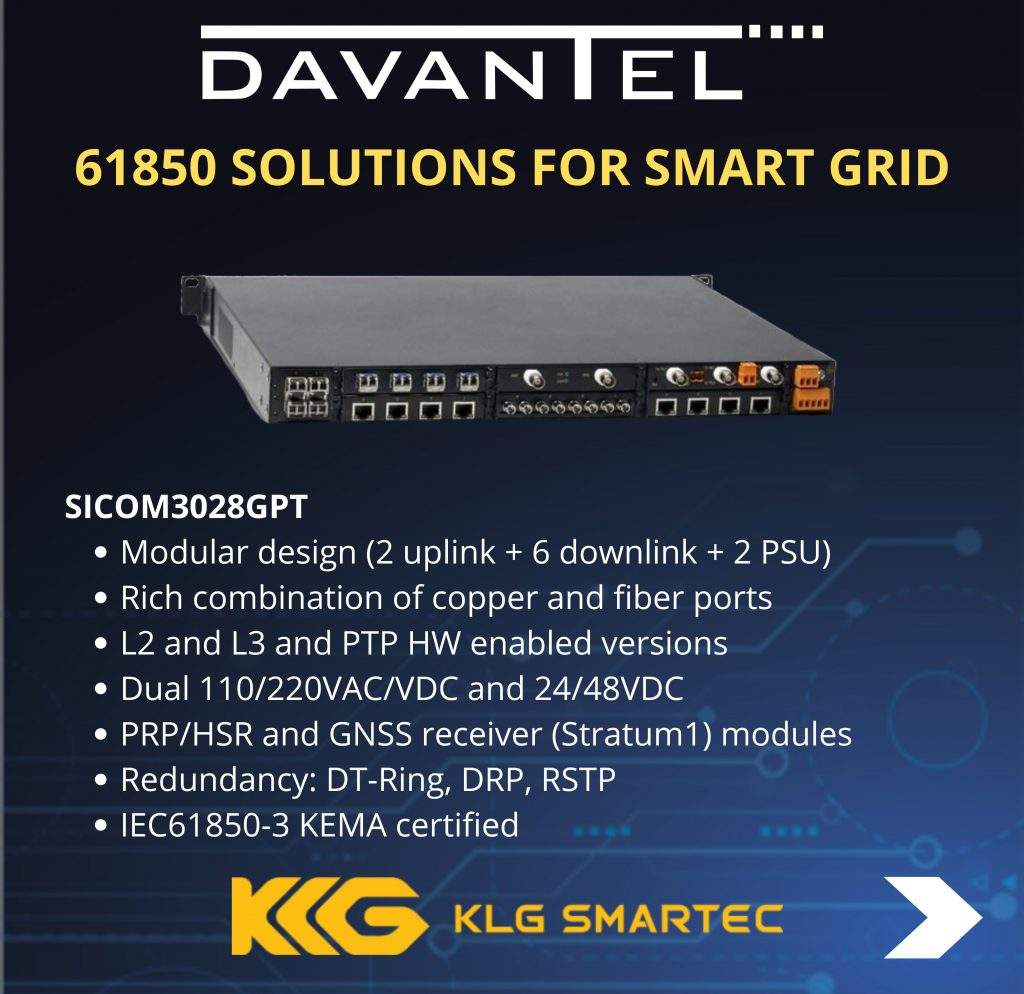

⚡ 𝐒𝐈𝐂𝐎𝐌𝟑𝟎𝟐𝟖𝐆𝐏𝐓 - 𝟏𝟗'' 𝐫𝐚𝐜𝐤𝐦𝐨𝐮𝐧𝐭 𝐬𝐰𝐢𝐭𝐜𝐡 ⚡
✔️ Modular design (2 uplink + 6 downlink + 2 PSU)
✔️ Rich combination of copper and fiber ports
✔️ L2 and L3 and PTP HW enabled versions
✔️ Dual 110/220VAC/VDC and 24/48VDC
✔️ PRP/HSR and GNSS receiver (Stratum1) modules
✔️ Redundancy: DT-Ring, DRP, RSTP
✔️ IEC61850-3 KEMA certified
|
|
|

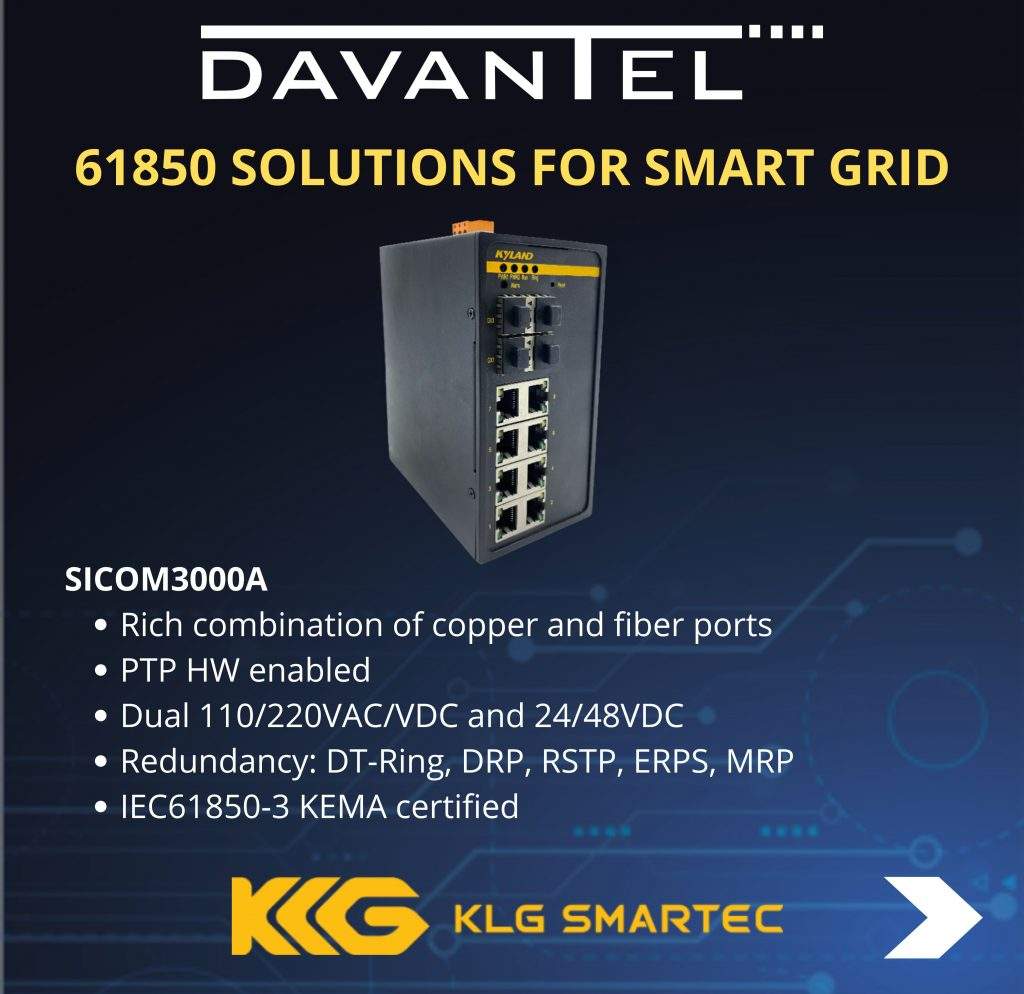

⚡ 𝐒𝐈𝐂𝐎𝐌𝟑𝟎𝟎𝟎𝐀 - 𝐃𝐈𝐍 𝐫𝐚𝐢𝐥 𝐬𝐰𝐢𝐭𝐜𝐡 ⚡
✔️ Rich combination of copper and fiber ports
✔️ PTP HW enabled
✔️ Dual 110/220VAC/VDC and 24/48VDC
✔️ Redundancy: DT-Ring, DRP, RSTP, ERPS, MRP
✔️ IEC61850-3 KEMA certified
|
|
|

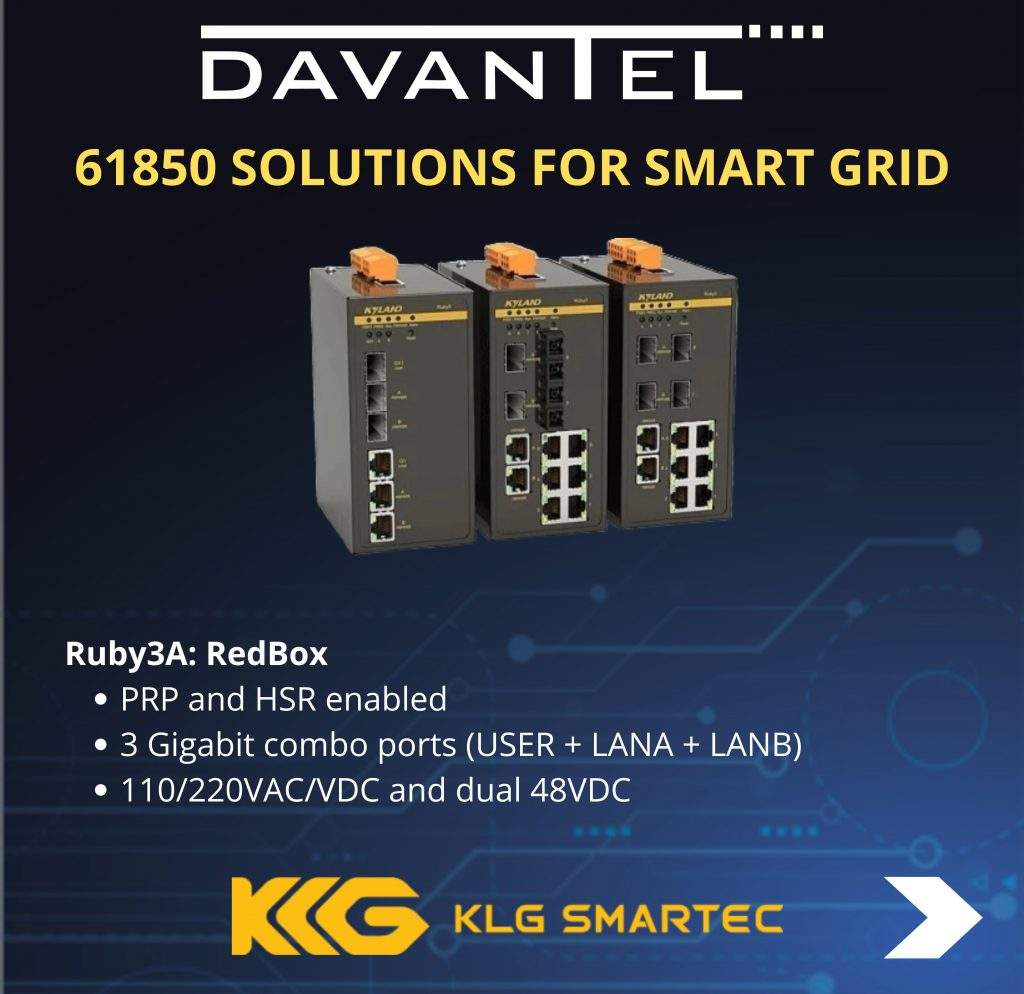

⚡ 𝐑𝐮𝐛𝐲𝟑𝐀: 𝐑𝐞𝐝𝐁𝐨𝐱 ⚡
✔️ PRP and HSR enabled
✔️ 3 Gigabit combo ports (USER + LANA + LANB)
✔️ 110/220VAC/VDC and dual 48VDCPRP and HSR enabled
|
|
|

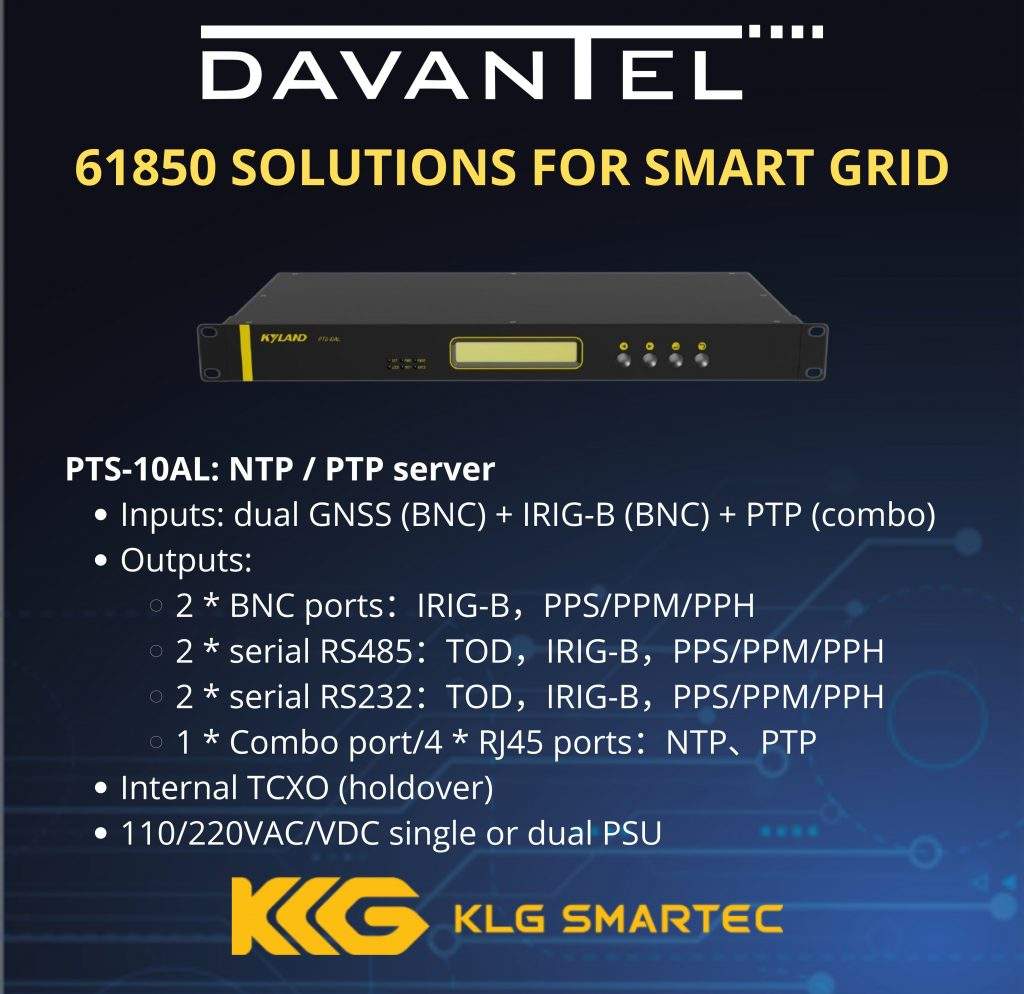

⚡ 𝗣𝗧𝗦-𝟭𝟬𝗔𝗟: 𝗡𝗧𝗣 / 𝗣𝗧𝗣 𝘀𝗲𝗿𝘃𝗲𝗿 ⚡
✔️ Inputs: dual GNSS (BNC) + IRIG-B (BNC) + PTP (combo)
✔️ Outputs:
✔️ 2 * BNC ports：IRIG-B，PPS/PPM/PPH
✔️ 2 * serial RS485：TOD，IRIG-B，PPS/PPM/PPH
✔️ 2 * serial RS232：TOD，IRIG-B，PPS/PPM/PPH
✔️ 1 * Combo port/4 * RJ45 ports：NTP、PTP
✔️ Internal TCXO (holdover)
✔️ 110/220VAC/VDC single or dual PSU
|
|
|

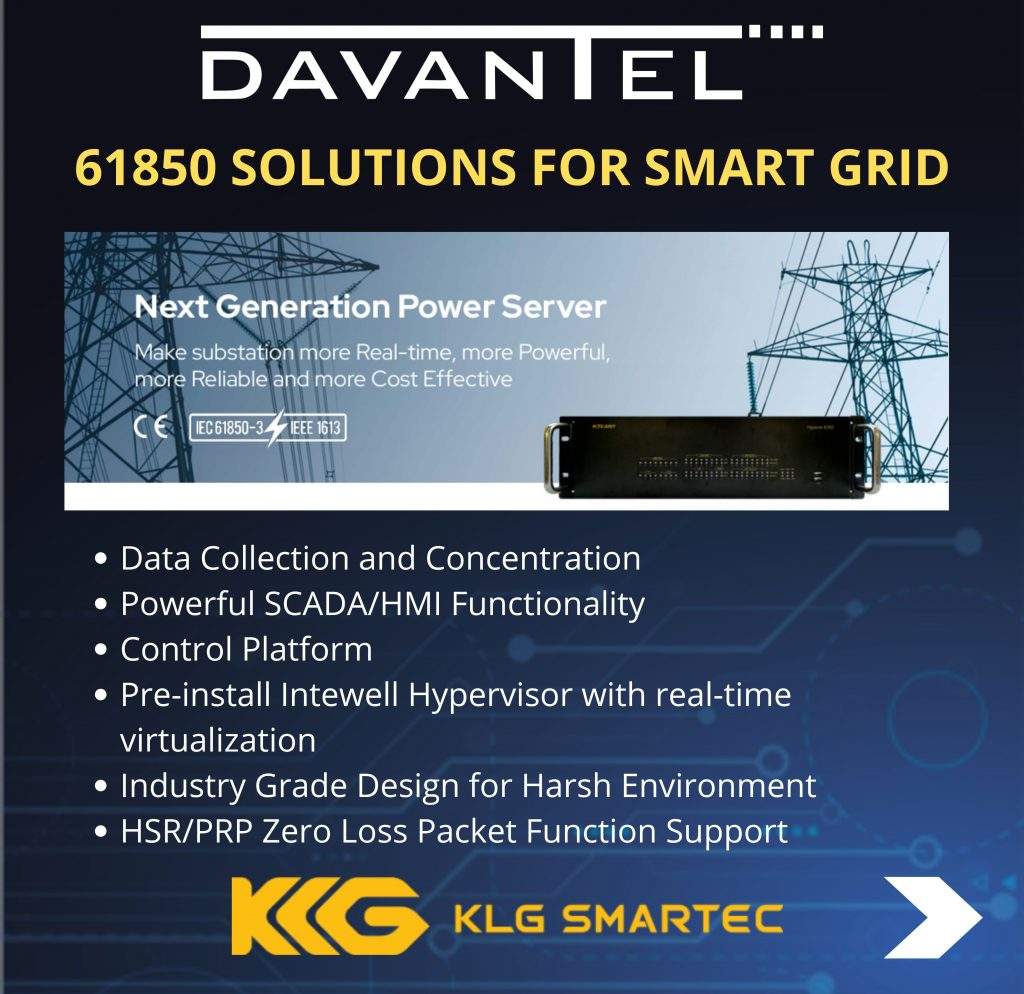

⚡ 𝗛𝘆𝗽𝗲𝗿𝗶𝗲𝟴𝟯𝟬𝟬 𝗽𝗼𝘄𝗲𝗿 𝗮𝘂𝘁𝗼𝗺𝗮𝘁𝗶𝗼𝗻 𝘀𝗲𝗿𝘃𝗲𝗿 ⚡
✔️ Intel® CoreTM i7-8665UE Quad Core, 32GB DDR4
✔️ 6 x 10/100/1000BaseTX + 2 x SFP GX
✔️ 8xRS232/485 + 4 x DI, 4 x DO + 1 x IRIG-B IN, 1 x IRIG-B OUT
✔️ 2 x USB2.0 (front), 3 x USB3.0 (rear) + 1 VGA + 2 HDMI
✔️ Dual 110/220VAC/VDC
✔️ PRP/HSR module available
✔️ -40℃ to +75℃
✔️ IEC61850-3 and IEEE1613
✔️ Intewell HyperVisor virtualization
|
|
|
|
|
|
|

|
